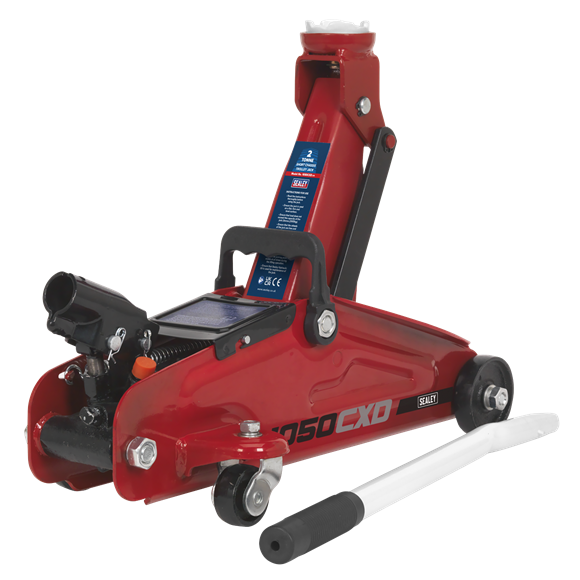

Short Chassis Trolley Jack with Storage Case 2 Tonne
Model No. 1050CXD| List Price | |||
| 80.34 | |||
|
|
|||
| List Price | |||
| 80.34 | |||
|
|
|||
- VERSATILE LIFTING RANGE - Minimum saddle height 130mm, maximum saddle height 330mm.
- OVERLOAD PROTECTION - For user safety.
- EASY-TO-STORE - Supplied in tough storage case to keep dirty jack away from contents of car boot.
- STRONG CHASSIS - Steel chassis with welded castor supports and one-piece hydraulic unit.
- SUITABLE FOR - The hobby user or as an emergency mobile jack.
Capacity:
2 Tonne
Length:
450mm
Maximum Chassis Height:
126mm
Maximum Saddle Height:
330mm
Minimum Saddle Height:
130mm
Nett Weight:
8.6kg
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)
1020LE.V3-08
External Circlip 11.8mm ID.
Name: External Circlip 11.8mm ID.
Model No: 1020LE.V3-08
£1.49
£1.79
1020LE.V3-09
External Circlip 12.0mm ID.
Name: External Circlip 12.0mm ID.
Model No: 1020LE.V3-09
£1.49
£1.79
1020LE.V3-31
O-Ring (Ø25 × Ø3.55)
Name: O-Ring (Ø25 × Ø3.55)
Model No: 1020LE.V3-31
£1.49
£1.79
1020LE.V3-32
Seal Ring
Name: Seal Ring
Model No: 1020LE.V3-32
£1.49
£1.79
1020LE.V3-34
Oil Seal
Name: Oil Seal
Model No: 1020LE.V3-34
£1.49
£1.79
1020LE.V3-35
Wedge Ring
Name: Wedge Ring
Model No: 1020LE.V3-35
£1.49
£1.79
1020LE.V3-37
Flat Washer (Ø34 x Ø23 x 0.8)
Name: Flat Washer (Ø34 x Ø23 x 0.8)
Model No: 1020LE.V3-37
£1.49
£1.79
1020LE.V3-39
Bushing Cover
Name: Bushing Cover
Model No: 1020LE.V3-39
£1.49
£1.79
1020LE.V3-40
Back-up Washer
Name: Back-up Washer
Model No: 1020LE.V3-40
£1.49
£1.79
1020LE.V3-41
U-Cup Seal
Name: U-Cup Seal
Model No: 1020LE.V3-41
£1.49
£1.79
1020LE.V3-43
Filter
Name: Filter
Model No: 1020LE.V3-43
£1.49
£1.79
1020LE.V3-51
O-Ring (Ø6 × Ø3)
Name: O-Ring (Ø6 × Ø3)
Model No: 1020LE.V3-51
£1.49
£1.79
1020LE.V3-55
Flat Washer (Ø16 x 4 × 4 x 1)
Name: Flat Washer (Ø16 x 4 × 4 x 1)
Model No: 1020LE.V3-55
£1.49
£1.79
1020LE.V3-58
Back-up Washer
Name: Back-up Washer
Model No: 1020LE.V3-58
£1.49
£1.79
1050CX.V5-01
Saddle Base
Name: Saddle Base
Model No: 1050CX.V5-01
£8.49
£10.19
1050CX.V5-02
Saddle, White Serrated Cup (F) Ø 50mm
Name: Saddle, White Serrated Cup (F) Ø 50mm
Model No: 1050CX.V5-02
£2.49
£2.99
1050CX.V5-03
Saddle Pin
Name: Saddle Pin
Model No: 1050CX.V5-03
£1.49
£1.79
1050CX.V5-05
Axle
Name: Axle
Model No: 1050CX.V5-05
£2.49
£2.99
1050CX.V5-07
Radius Link
Name: Radius Link
Model No: 1050CX.V5-07
£2.49
£2.99
1050CX.V5-08
External Circlip
Name: External Circlip
Model No: 1050CX.V5-08
£1.49
£1.79
1050CX.V5-09
Lifting Arm Assembly
Name: Lifting Arm Assembly
Model No: 1050CX.V5-09
£17.49
£20.99
1050CX.V5-10
Ram Plunger Axle
Name: Ram Plunger Axle
Model No: 1050CX.V5-10
£3.49
£4.19
1050CX.V5-11
External Circlip
Name: External Circlip
Model No: 1050CX.V5-11
£1.49
£1.79
1050CX.V5-12
Return Spring
Name: Return Spring
Model No: 1050CX.V5-12
£2.99
£3.59
1050CX.V5-13
Wheel, Front Fixed, (D: 66 W:22 B: 17)
Name: Wheel, Front Fixed, (D: 66 W:22 B: 17)
Model No: 1050CX.V5-13
£7.49
£8.99
1050CX.V5-14
Wheel Bush
Name: Wheel Bush
Model No: 1050CX.V5-14
£1.49
£1.79
1050CX.V5-15
Front Axle
Name: Front Axle
Model No: 1050CX.V5-15
£6.99
£8.39
1050CX.V5-18
Frame Pin
Name: Frame Pin
Model No: 1050CX.V5-18
£7.99
£9.59
1050CX.V5-21
Frame Tie Rod
Name: Frame Tie Rod
Model No: 1050CX.V5-21
£1.99
£2.39
1050CX.V5-22
Side Frame, Left
Name: Side Frame, Left
Model No: 1050CX.V5-22
£22.49
£26.99
1050CX.V5-23
Side Frame, Right
Name: Side Frame, Right
Model No: 1050CX.V5-23
£22.49
£26.99
1050CX.V5-24
Wheel, Rear Swivel Castor, Single Bolt (D: 38 W: 18 B: 6 H:
Name: Wheel, Rear Swivel Castor, Single Bolt (D: 38 W: 18 B: 6 H:
Model No: 1050CX.V5-24
£7.49
£8.99
1050CX.V5-27
Cover Plate
Name: Cover Plate
Model No: 1050CX.V5-27
£1.49
£1.79
1050CX.V5-28
Carry Handle
Name: Carry Handle
Model No: 1050CX.V5-28
£2.99
£3.59
1050CX.V5-29
Ram Piston
Name: Ram Piston
Model No: 1050CX.V5-29
£3.49
£4.19
1050CX.V5-33
Top Nut
Name: Top Nut
Model No: 1050CX.V5-33
£7.49
£8.99
1050CX.V5-36
Reservior
Name: Reservior
Model No: 1050CX.V5-36
£4.49
£5.39
1050CX.V5-39
Cylinder
Name: Cylinder
Model No: 1050CX.V5-39
£7.49
£8.99
1050CX.V5-41
Base
Name: Base
Model No: 1050CX.V5-41
£38.49
£46.19
1050CX.V5-42
Pump Piston
Name: Pump Piston
Model No: 1050CX.V5-42
£2.99
£3.59
1050CX.V5-45
Pump
Name: Pump
Model No: 1050CX.V5-45
£3.49
£4.19
1050CX.V5-48
Release Valve
Name: Release Valve
Model No: 1050CX.V5-48
£2.49
£2.99
1050CX.V5-50
Release Valve Spring
Name: Release Valve Spring
Model No: 1050CX.V5-50
£1.49
£1.79
1050CX.V5-51
Protection Cap
Name: Protection Cap
Model No: 1050CX.V5-51
£1.49
£1.79
1050CX.V5-52
Safety Valve Screw
Name: Safety Valve Screw
Model No: 1050CX.V5-52
£1.49
£1.79
1050CX.V5-53
Safety Valve Spring
Name: Safety Valve Spring
Model No: 1050CX.V5-53
£1.49
£1.79
1050CX.V5-54
Safety Valve Base
Name: Safety Valve Base
Model No: 1050CX.V5-54
£1.49
£1.79
1050CX.V5-58
Connection Sleeve
Name: Connection Sleeve
Model No: 1050CX.V5-58
£1.99
£2.39
1050CX.V5-59
Handle Socket
Name: Handle Socket
Model No: 1050CX.V5-59
£3.99
£4.79
1050CX.V5-60
Handle Socket Pin (A)
Name: Handle Socket Pin (A)
Model No: 1050CX.V5-60
£1.49
£1.79
1050CX.V5-61
Handle Socket Pin (B)
Name: Handle Socket Pin (B)
Model No: 1050CX.V5-61
£1.49
£1.79
1050CX.V5-62
Handle Socket Retaining Pin
Name: Handle Socket Retaining Pin
Model No: 1050CX.V5-62
£1.49
£1.79
1050CX.V5-63
Jack Handle (pinched oval)
Name: Jack Handle (pinched oval)
Model No: 1050CX.V5-63
£6.99
£8.39
1050CX.V5-64
Handle Grip for Jack Handle
Name: Handle Grip for Jack Handle
Model No: 1050CX.V5-64
£1.99
£2.39
1050CX.V5-HU
Hydraulic Unit Complete
Name: Hydraulic Unit Complete
Model No: 1050CX.V5-HU
£27.49
£32.99
1050CX.V5-RK
Repair Kit (for 1050CX.V5)
Name: Repair Kit (for 1050CX.V5)
Model No: 1050CX.V5-RK
£2.99
£3.59
1050CXD.V4-BMC
Blow Moulded Case
Name: Blow Moulded Case
Model No: 1050CXD.V4-BMC
£13.99
£16.79
FWM10.S
Flat Washer M10 Zinc
Name: Flat Washer M10 Zinc
Model No: FWM10.S
£0.99
£1.19
NLN8.S
Nyloc Nut M8 Zinc
Name: Nyloc Nut M8 Zinc
Model No: NLN8.S
£0.79
£0.95
SB-4.0
Steel Ball 4.0mm
Name: Steel Ball 4.0mm
Model No: SB-4.0
£1.49
£1.79
SB-5.0
Steel Ball 5.0mm
Name: Steel Ball 5.0mm
Model No: SB-5.0
£1.49
£1.79
SB-6.1
Steel Ball 6.1mm
Name: Steel Ball 6.1mm
Model No: SB-6.1
£1.49
£1.79
SN10.S
Steel Nut M10 Zinc
Name: Steel Nut M10 Zinc
Model No: SN10.S
£0.99
£1.19
SN12.S
Steel Nut M12 Zinc
Name: Steel Nut M12 Zinc
Model No: SN12.S
£0.99
£1.19
SWM12.S
Spring Washer M12 Zinc
Name: Spring Washer M12 Zinc
Model No: SWM12.S
£0.99
£1.19
SWM8.S
Spring Washer M8 Zinc
Name: Spring Washer M8 Zinc
Model No: SWM8.S
£0.49
£0.59
- VERSATILE LIFTING RANGE - Minimum saddle height 130mm, maximum saddle height 330mm.
- OVERLOAD PROTECTION - For user safety.
- EASY-TO-STORE - Supplied in tough storage case to keep dirty jack away from contents of car boot.
- STRONG CHASSIS - Steel chassis with welded castor supports and one-piece hydraulic unit.
- SUITABLE FOR - The hobby user or as an emergency mobile jack.
Capacity:
2 Tonne
Length:
450mm
Maximum Chassis Height:
126mm
Maximum Saddle Height:
330mm
Minimum Saddle Height:
130mm
Nett Weight:
8.6kg
