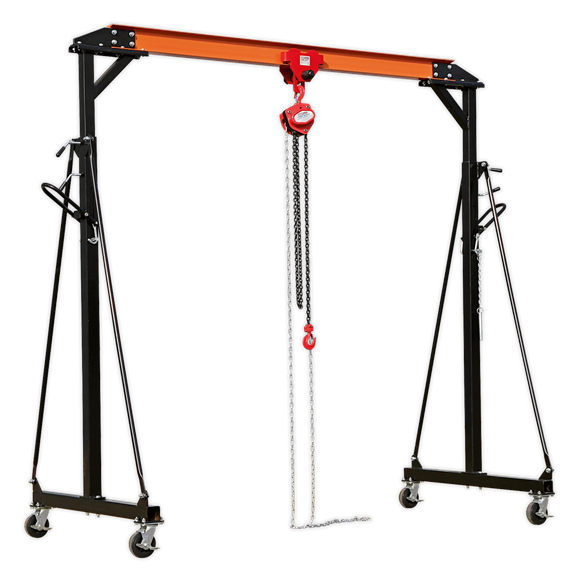

- PORTABLE AND FREESTANDING - Ideal for shops where level lifting is essential.
- EASY TO MANOEUVRE - Four swivel locking castors for ease of positioning.
- HEIGHT ADJUSTABLE - From 2400 to 3600mm in 100mm increments (unladen).
- STRONG CHASSIS – All steel construction with 'I' beam cross member for additional strength.
- DIMENSIONS - Gantry width: 2400mm, Maximum depth: 1200mm.
- SUITABLE FOR - Maintenance, manufacturing, repairs and other material-handling tasks.
- SAFETY PRECAUTIONS - Gantry crane is NOT to be moved while loaded. Lifting tackle not included. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Gantry Width:
2400mm
Maximum Depth:
1200mm
Maximum Height:
3600mm
Maximum Load Capacity:
1000kg
Minimum Height:
2400mm
Nett Weight:
128kg
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)

FWM12.S
Flat Washer M12 Zinc
Name: Flat Washer M12 Zinc
Model No: FWM12.S
£0.79
£0.95

HHB1060.S
Hex Head Bolt M10 x 60mm
Name: Hex Head Bolt M10 x 60mm
Model No: HHB1060.S
£1.49
£1.79

SG1000.01
Bolt (m12x35)
Name: Bolt (m12x35)
Model No: SG1000.01
£2.49
£2.99

SG1000.05
Bolt m14x40 c/w washer,spring washer & nut
Name: Bolt m14x40 c/w washer,spring washer & nut
Model No: SG1000.05
£1.49
£1.79

SG1000.09
Bolt (m12)
Name: Bolt (m12)
Model No: SG1000.09
£1.49
£1.79

SG1000.12
Set screw m8x40(inc m8 nyloc nut)
Name: Set screw m8x40(inc m8 nyloc nut)
Model No: SG1000.12
£1.49
£1.79

SG1000.17
Nut (m10) c/w washer
Name: Nut (m10) c/w washer
Model No: SG1000.17
£1.49
£1.79

SG1000.18
Pin assy.
Name: Pin assy.
Model No: SG1000.18
£33.49
£40.19

SG1000.19
Crossbeam (75mm x 120mm x 2200mm)
Name: Crossbeam (75mm x 120mm x 2200mm)
Model No: SG1000.19
£129.49
£155.39

SG1000.20
Plate (a)
Name: Plate (a)
Model No: SG1000.20
£12.99
£15.59

SG1000.20B
Plate (b)
Name: Plate (b)
Model No: SG1000.20B
£12.99
£15.59

SG1000.21
Inner vertical post
Name: Inner vertical post
Model No: SG1000.21
£111.49
£133.79

SG1000.22
Support tube
Name: Support tube
Model No: SG1000.22
£17.49
£20.99

SG1000.23
Outer vertical post
Name: Outer vertical post
Model No: SG1000.23
£82.49
£98.99

SG1000.24
Handle
Name: Handle
Model No: SG1000.24
£5.49
£6.59

SG1000.25
Pin
Name: Pin
Model No: SG1000.25
£5.49
£6.59

SG1000.26
Base assembly
Name: Base assembly
Model No: SG1000.26
£68.49
£82.19

SG1000.27
Wheel,swivel castor,4 bolt (w/brake)(D:125 W:50 B:14 H:160)
Name: Wheel,swivel castor,4 bolt (w/brake)(D:125 W:50 B:14 H:160)
Model No: SG1000.27
£34.99
£41.99

SN10.S
Steel Nut M10 Zinc
Name: Steel Nut M10 Zinc
Model No: SN10.S
£0.99
£1.19

SN12.S
Steel Nut M12 Zinc
Name: Steel Nut M12 Zinc
Model No: SN12.S
£0.99
£1.19

SN14.S
Steel Nut M14 Zinc
Name: Steel Nut M14 Zinc
Model No: SN14.S
£0.99
£1.19

SN8.S
Steel Nut M8 Zinc
Name: Steel Nut M8 Zinc
Model No: SN8.S
£1.49
£1.79

SS1030.S
Hex Head Set Screw M10 X 30 Zinc
Name: Hex Head Set Screw M10 X 30 Zinc
Model No: SS1030.S
£1.49
£1.79

SWM10.S
Spring Washer M10 Zinc
Name: Spring Washer M10 Zinc
Model No: SWM10.S
£0.99
£1.19

SWM12.S
Spring Washer M12 Zinc
Name: Spring Washer M12 Zinc
Model No: SWM12.S
£0.99
£1.19

SWM14.S
Spring Washer M14 Zinc
Name: Spring Washer M14 Zinc
Model No: SWM14.S
£0.99
£1.19
